Why Copper Foil Best for Transformer Windings?



As power equipment evolves toward higher efficiency, miniaturization, and greater reliability, foil windings are progressively replacing traditional wire-wound structures, becoming the mainstream solution for distribution transformers, new energy transformers, and reactors. Among the base materials available for foil windings, copper foil is universally recognized by the industry as the optimal choice. This is not merely an empirical judgment based on conductivity; rather, it is the inevitable result of a profound synergy between material properties and winding architecture. Copper foil demonstrates comprehensive performance advantages across the board—from loss control, space utilization, and heat dissipation efficiency to long-term reliability.

- High Electrical Conductivity and Superior Loss Control

Its intrinsic conductivity provides the fundamental basis: C1100 copper foil maintains a stable conductivity of 100%–101% IACS and a resistivity of only 0.0172 Ω·mm²/m, resulting in far lower DC losses than aluminum foil for the same current-carrying capacity. More importantly, the foil structure perfectly accommodates the skin effect associated with alternating current. At power frequency, the skin depth of copper is approximately 9 mm; in contrast, circular wire conductors suffer from extremely low current density in the core, leading to inefficient conductor utilization. Copper foil, however, allows for thickness optimization based on the operating frequency, ensuring uniform current distribution across the entire cross-section. This boosts conductor utilization by over 20%—an advantage that becomes even more pronounced under high-frequency conditions—thereby effectively reducing additional losses and precisely aligning with the design goals of high-efficiency, energy-saving transformers.

- Improved Space Utilization and Heat Dissipation Performance

Soft-annealed copper foil offers excellent ductility, with an elongation at break of ≥35%, allowing for tight inter-turn contact during winding and a fill factor exceeding 90%—an improvement of 10–15 percentage points over traditional wire windings. This means that for a given winding volume, the copper foil solution can handle higher currents; conversely, for a given capacity, the winding volume can be reduced by 15%–20%, directly driving the miniaturization of the transformer unit. Moreover, copper boasts a thermal conductivity of 401 W/(m·K)—1.7 times that of aluminum. Its foil-winding configuration ensures tight interlayer contact, allowing for rapid axial heat conduction and a uniform temperature distribution; this results in hot-spot temperatures 5–8°C lower than those of wire-wound coils, thereby effectively extending the service life of both the insulation materials and the windings.

- High Quality and Reliability

Based on my years of experience in the electrical materials industry, nearly 40% of winding failures stem from defects in welded joints. Copper foil windings are produced using continuous winding from large-format coils, reducing the number of joints by over 80% compared to wire windings; this drastically cuts down on welding defects and resistive losses at joints. Furthermore, the precision-rounded edges of the copper foil are smooth and burr-free, eliminating the risk of inter-turn corona discharge and raising the partial discharge inception voltage by more than 30%. Additionally, the soft-annealing process completely eliminates residual internal stress in the copper foil, removing the risk of stress release or deformation during long-term thermal cycling; this enhances structural stability and significantly lowers the failure rate over the product's entire lifecycle.

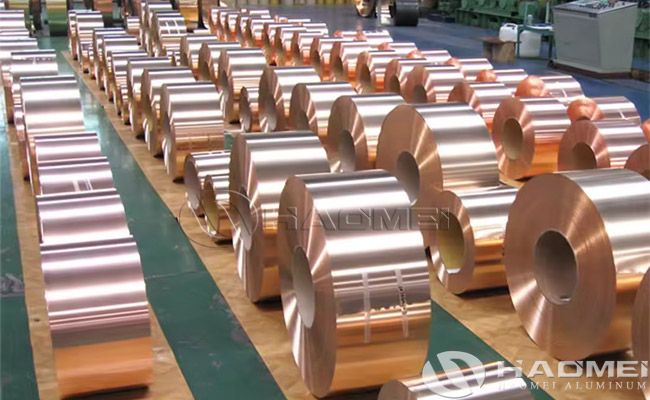

The C1100 soft-annealed copper foil for transformers supplied by Haomei Aluminum offers consistent performance and precise dimensional control, making it compatible with various high-speed foil-winding production lines and providing a highly reliable winding substrate solution for global transformer manufacturers. From a lifecycle value perspective, although the initial material cost of copper foil is higher than that of aluminum foil, its superior overall economic efficiency—driven by lower load losses, extended service life, and reduced operation and maintenance costs—becomes evident over an operational lifespan exceeding 20 years. Ultimately, the superiority of copper foil stems from the synergistic optimization of material properties and winding structure, precisely aligning with the core development trends of modern transformers: high efficiency, compactness and longevity.
